In stock
34.49 £
Brand:
2UUL
Colour:
Black / Green
  • Rotary Shaft Lock Mechanism: Non-rebound rotary locking system securely holds smartphone motherboards and ICs without slipping under force.
  • Heat Dissipation Base Design: Integrated bottom heatsink and ventilation channels allow hot air from heat guns to discharge efficiently during soldering.

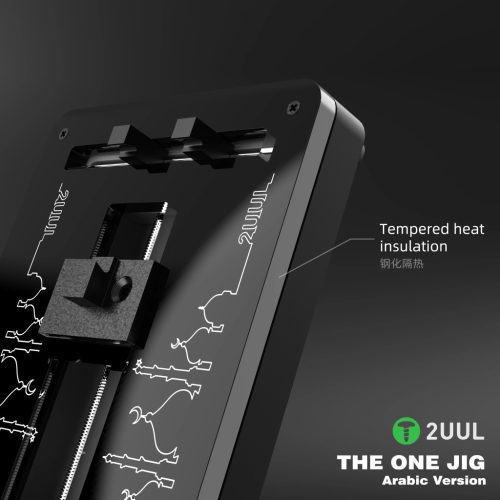

  • 500°C Heat-Resistant Synthetic Stone: High-density synthetic stone clamp jaws withstand direct hot air exposure without warping or retaining excess heat.
Details

Professional High-Temperature PCB & BGA Chip Repair Fixture

The 2UUL BH03 "The One Jig" Universal PCB Logic Board & Chip Holder Fixture is a premium micro-soldering workbench tool engineered for smartphone repair technicians, board-level service engineers, and PCB refurbishment workshops. Built with high-density synthetic stone clamps and an anti-skid weighted foundation, "The One Jig" delivers total stability and thermal management during delicate component soldering, chip reballing, and adhesive scraping.

Key Specifications & Benefits

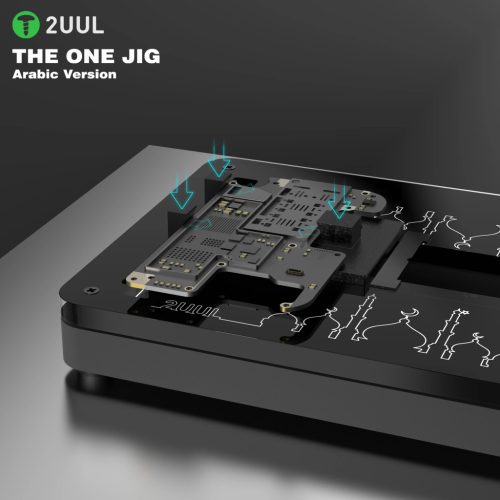

  • Rotary Screw Locking: Micro-threaded rotary locking shaft prevents clamp rebound, holding irregular smartphone PCB shapes firmly in place during prying or scraping.
  • Thermal Management Heatsink: Features a specially designed bottom plate that dissipates hot air efficiently, preventing thermal stress buildup on delicate logic board traces.

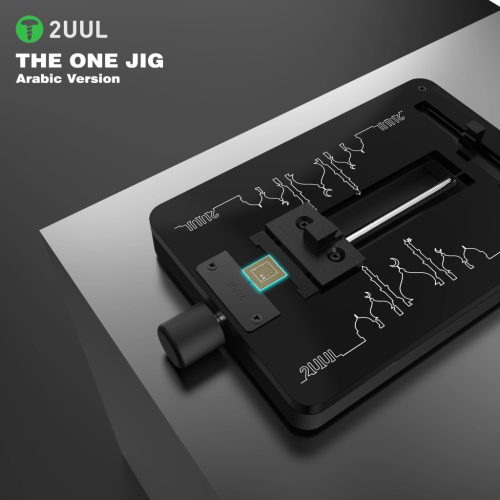

  • Multi-Level Heights for Micro ICs: Precision step-grooves accommodate small BGA chips, CPUs, and NAND flash memory at varying heights for optimal microscope positioning.
  • Anti-Skid Workbench Stability: Specialised rubber footing prevents fixture movement on repair benches when applying lateral pressure.

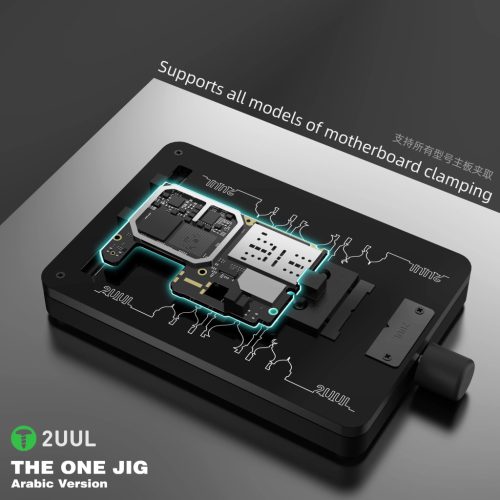

  • Universal Smartphone Compatibility: Adjusts smoothly to fit major phone logic boards including Apple iPhone, iPad, Samsung Galaxy, and Android motherboards.

Technical Specifications

  • Model: 2UUL BH03 (The One Jig)
  • Product Type: PCB Logic Board & BGA Chip Repair Clamp
  • Material: Synthetic Stone Jaws & Alloy Chassis
  • Heat Resistance: Up to 500°C
  • Clamping Mechanism: Rotary Shaft Screw Lock
  • Application: Logic Board Rework, BGA Chip Reballing, Glue Cleaning
Data
Weight:
400 g/pcs
