RELIFE TB-07 USB-C & Lightning Test Point Diagnostic Board
4.99 £
RELIFE TB-07 USB-C & Lightning Test Point Diagnostic Board
In stock
4.99 £
Brand:
RELIFE

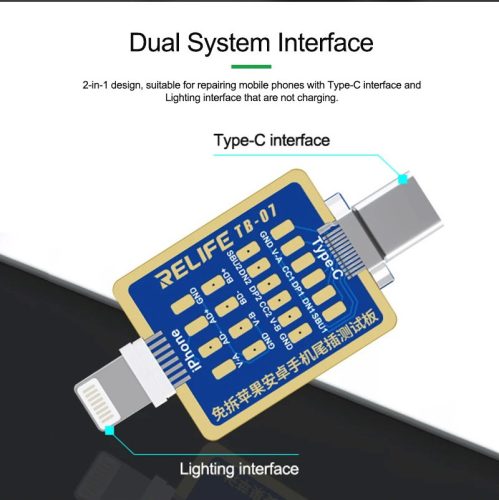

- Dual Interface Diagnostic Board: Features integrated USB Type-C and Apple Lightning ports for mobile tail plug testing.
- Direct Pinout Test Points: Exposes VBUS, GND, CC, and Data pin trace pads for rapid multimeter and oscilloscope probing.

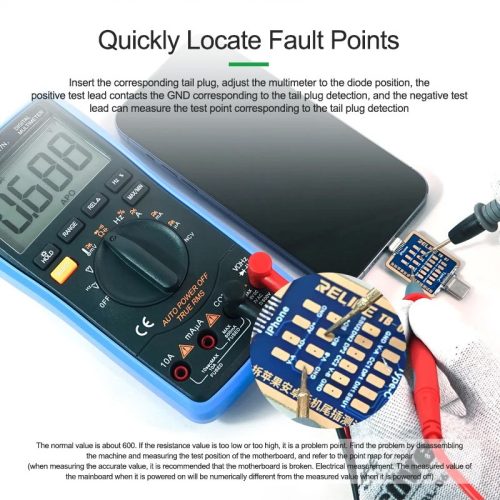

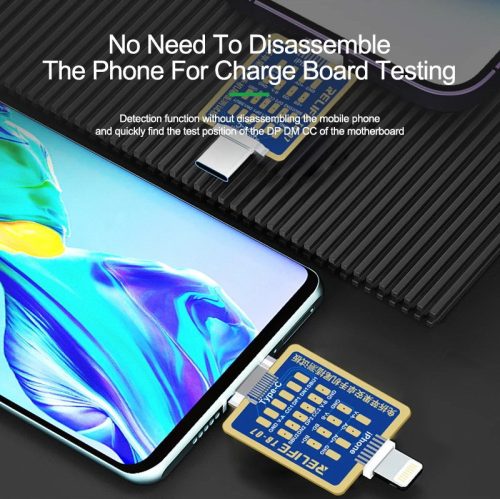

- No-Disassembly Troubleshooting: Enables non-invasive diagnosis of charging ports, data circuits, and shorted pins without opening device casings.
Details
RELIFE TB-07 USB-C & Lightning Charging Port Test Point Adapter
The RELIFE TB-07 is an essential diagnostic breakout board designed for mobile repair technicians. Featuring dual USB Type-C and Lightning connector interfaces, it provides direct external test points for measuring voltage, resistance, and signal integrity across charging and data transfer pinouts without dismantling smartphone frames.
Key Features & Specifications
- Comprehensive Dual Compatibility: Supports all modern iOS Lightning devices and USB Type-C Android smartphones and tablets.

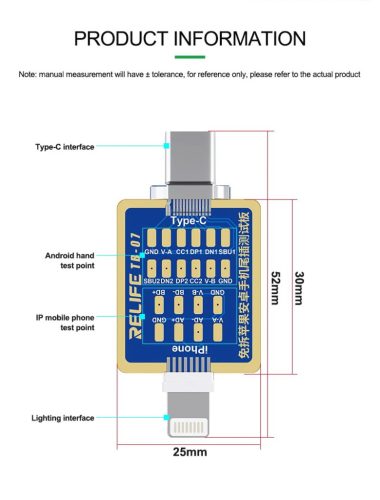

- Clear Pinout Test Pads: Direct access to critical power and data lines including VBUS, D+, D-, CC1, CC2, and Ground.
- Fast Fault Diagnosis: Accelerates troubleshooting for non-charging devices, intermittent power faults, and dead data transfer pins.
- Compact PCB Design: Built with high-durability gold-plated test pads resistant to wear from multimeter probes.
| Parameter | Specification |
|---|---|
| Brand | RELIFE |
| Model / MPN | TB-07 |
| Interface Types | USB Type-C & Apple 8-Pin Lightning |
| Application | Non-Invasive Charging Port & Data Line Diagnostics |
| Test Points Exposed | VBUS, GND, D+, D-, CC Pins |
| Target Devices | iOS & Android Smartphones / Tablets |
Data
Weight:
50 g/pcs
