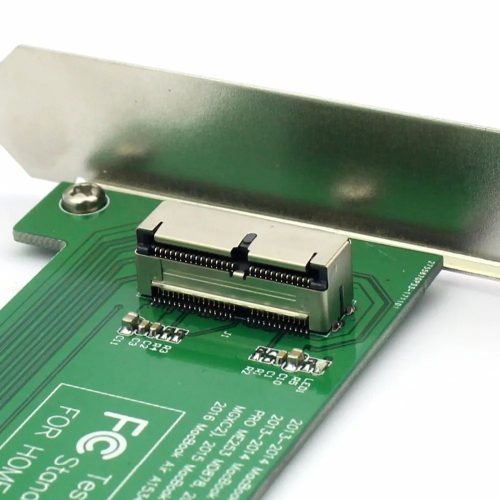

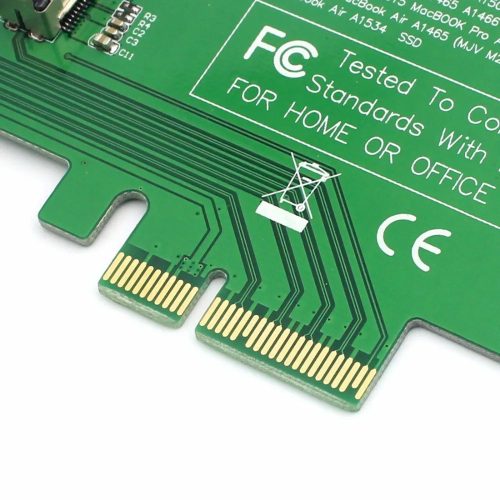

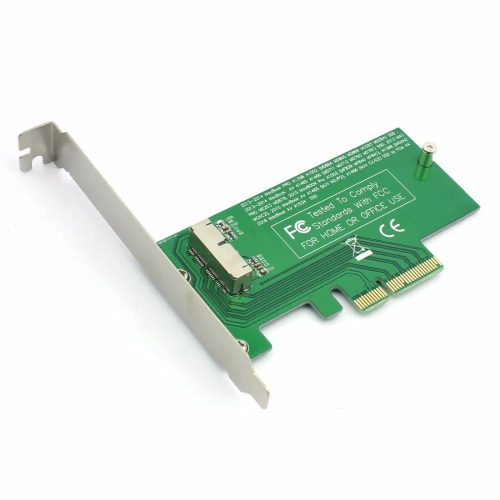

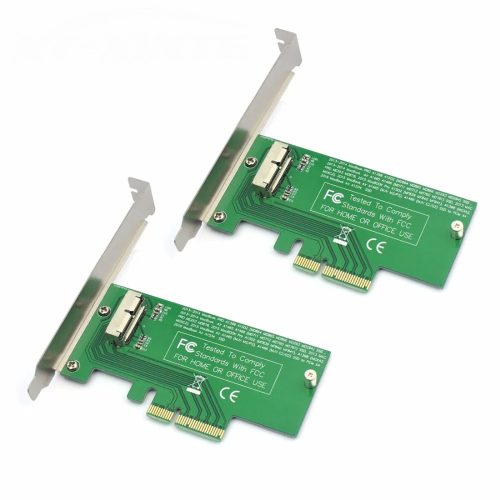

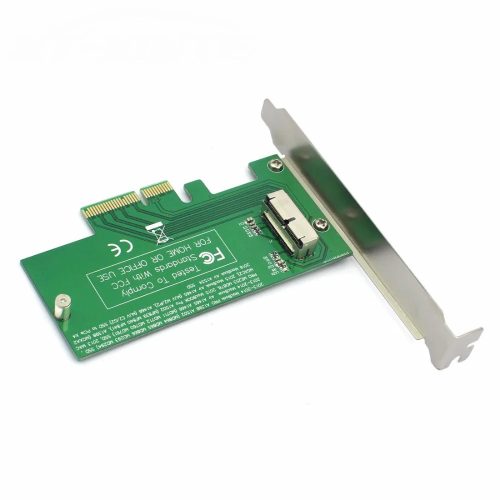

MacBook Air Pro 12+16 Pins SSD to PCI-Express Adapter Converter 2013/14/15

Please Note: The pictures only for illustration purposes!

About Description:

• 1.The product only support computer model is 2013 version for Apple for MacBook Pro retina model is A1398 A1502 (ME864 ME865 ME866 ME293 ME294),
  2014 version for Apple for MacBook Pro retina model is A1502 A1398 (MGX72 MGX82 MGX92 MGXA2 MGXC2),
  2015 version for Apple for MacBook Pro retina model is A1502 A1398(MF839 MF840 MF841 MGXA2 MGXC2),
  2013-2014 version for Apple for MacBook Air model is A1465 A1466(MD711 MD712 MD760 MD761),
  2015 version for Apple for MacBook Air model is A1465 A1466(MJVM2 MJVP2 MJVE2 MJVG2) laptop using SSD.

• 2.The product only support read data and write data in SSD,not support as the system startup disk.

• 3.Board Size:(L*W)12.00*10.90cm/4.72"*4.29"

• Quantity:1Pc

Notice:

• 1:Only sales adapter card,images of SSD and mainboard is not sales!

• 2:The computer must have a PCI Express 4x socket,version 2.0 or higher.The motherboard must be Intel 7 series chipset or higher version than 7 Series chipset.

• 3:Mac OS and some digital camera system use disk format can't compatible with Microsoft system,new SSD if there is no partition,open the "my computer"can't see the ssd, please use the Disk Manager in Windows to delete the partitions or to create a new partition on the SSD.

• 4:The adapter card and SSD and PCIe slot contact is clean, avoid poor contact.

• 5:Update your computer BIOS to the latest version

• 6:This product performance is being improved unceasingly, like has the change, not separate informs

About for MacBook Air SSD interface standard:

• 1: 2010 and 2011 version for MacBook Air SSD is 6+12 pin, only one side have contact,size is 109 mm*24 mm.It's SATA interface.

• 2: 2012 version for MacBook Air SSD is 7+17 pin, size is 109 mm*24 mm.2012 version for MacBook Pro SSD is 7+17 pin, size is 89 mm*33 mm.It's SATA interface.

• 3: 2013 and 2014 and 2015 version for MacBook Air SSD is both side have contact,one sid is 16+12 pin,the other side is 11+14 pin,size is 89 mm*24 mm.It's PCIe X4 interface.

• 4: 2013 and 2014 and 2015 version for MacBook Pro SSD is both side have contact,one sid is 16+12 pin,the other side is 11+14 pin,size is 89 mm*33 mm.It's PCIe X4 interface.

Note:

Size for manual measurement, there may be a 0 to 2 cm error, belongs to the normal phenomenon.

And due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

You'll receive:

1 x for Apple MacBook Pro&Air SSD to PCIe x4 converter adapter card
