MF47 Analog Mechanical Multimeter AC/DC Voltage Tester
22.49 £
NEW
MF47 Analog Mechanical Multimeter AC/DC Voltage Tester
NEW
In stock
22.49 £
Brand:
MF47
- Comprehensive AC/DC Testing: Accurately measures AC/DC voltage, DC current, resistance, transistor hFE, and battery capacity.
- Fuse & Overload Protected: Equipped with dual-fuse protection and internal anti-magnetic interference for durable, safe operation.
- Gold-Plated PCB Construction: Features high-precision movement with a wear-resistant, anti-oxidation gold-plated circuit board.
Details

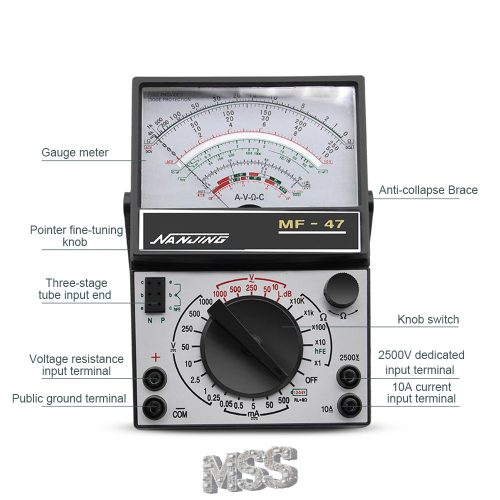

MF47 Mechanical Pointer Analog Multimeter
The MF47 is a classic high-precision analog multimeter designed for electrical maintenance, automotive troubleshooting, educational laboratories, and electronics repair. Built with an anti-magnetic movement and a gold-plated circuit board, it provides real-time, zero-latency visual feedback for voltage, current, and resistance diagnostics.
Key Features & Specifications

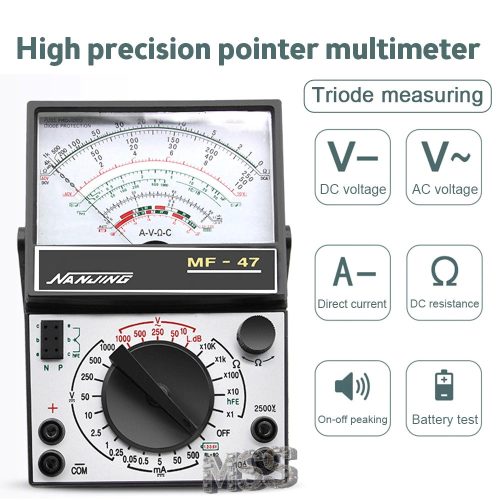

- Multifunction Measurement: Supports AC/DC voltage up to 1000V, DC current, resistance ranges up to x10kΩ, and battery capacity testing.

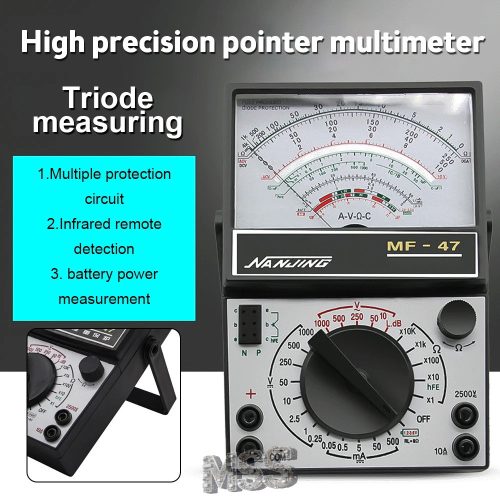

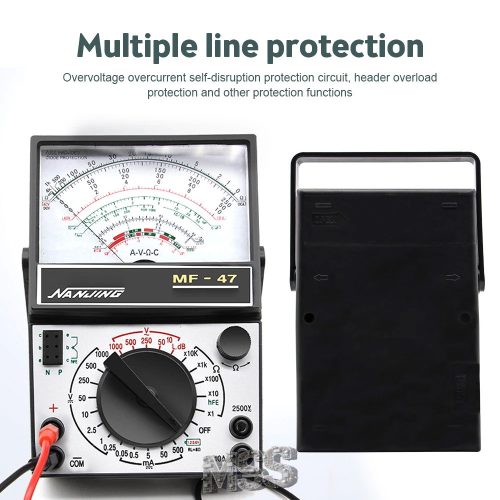

- Enhanced Safety Protection: Built-in fuse protection and overload protection guard against over-voltage and over-current conditions.
- High Precision Movement: Equipped with a sensitive induction coil for detecting weak currents and accurate zero-point adjustment.

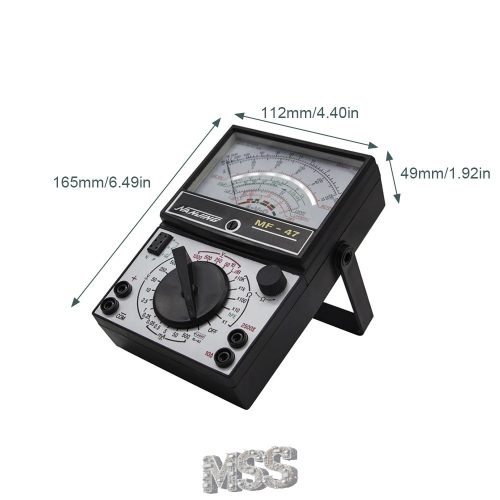

- Durable Build Quality: Features an anti-oxidation gold-plated PCB and robust housing measuring 165 x 112 x 49 mm.
| Parameter | Specification |
|---|---|
| Model / MPN | MF47 / MF-47 |

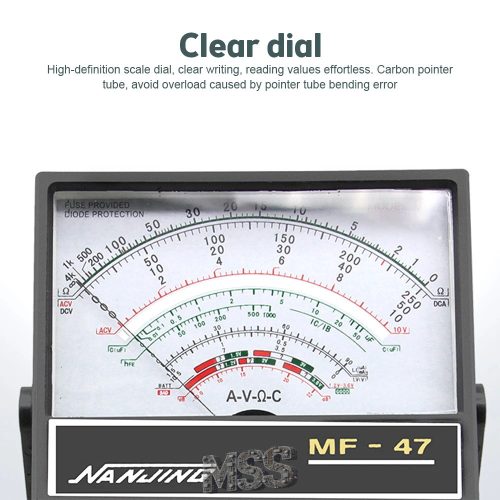

| Display Type | Analog Pointer / Dial Display |
| DC Voltage Ranges | 0.1V / 0.5V / 10V / 50V / 250V / 1000V |
| AC Voltage Ranges | 10V / 50V / 250V / 1000V |
| DC Current Ranges | 50µA / 2.5mA / 250mA |

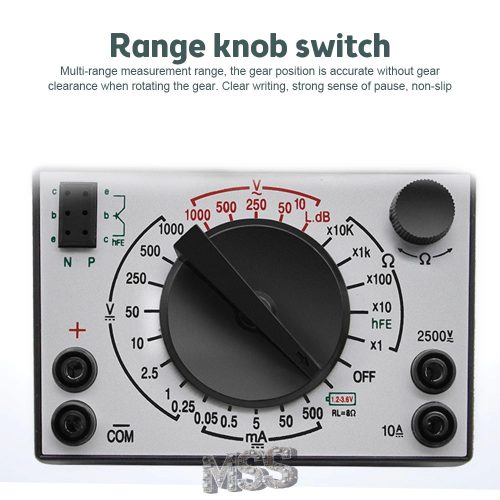

| Resistance Ranges | x1 / x10 / x1k / x10k |
| Special Functions | 1.5V / 9V Battery Test, Triode (hFE) Test |
| Circuit Board | Gold-Plated, Wear-Resistant PCB |
| Dimensions | 165 x 112 x 49 mm |
| Weight | 250 g |
Data
Weight:
400 g/pcs
