DePee DE-960TR Pointer Mechanical Analog Multimeter AC/DC
17.49 £
DePee DE-960TR Pointer Mechanical Analog Multimeter AC/DC
In stock
17.49 £
Brand:
DePee
- Comprehensive AC/DC Testing: Measures DC voltage up to 1000V, AC voltage up to 1000V, DC current, and resistance.
- High-Sensitivity Pointer Movement: Sensitive induction coil provides immediate real-time analog readings without digital sampling delay.
- Overload Protected: Engineered with full circuit overload protection for safe electrical diagnostics and student learning.
Details

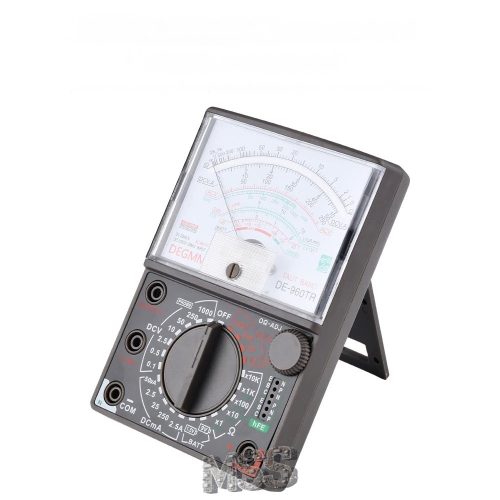

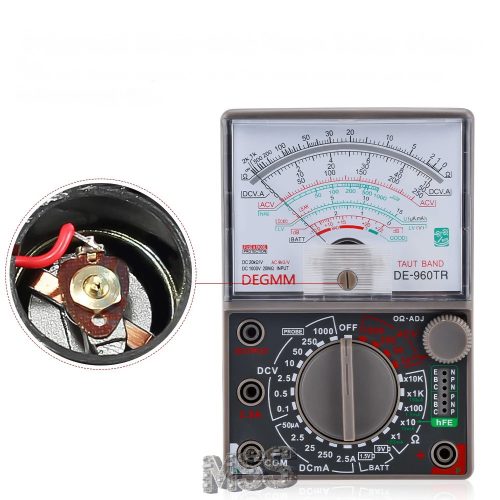

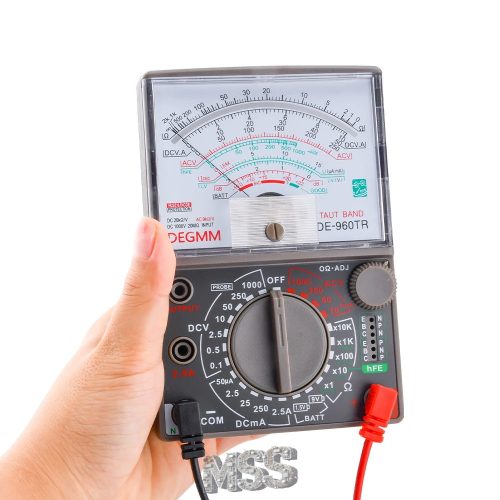

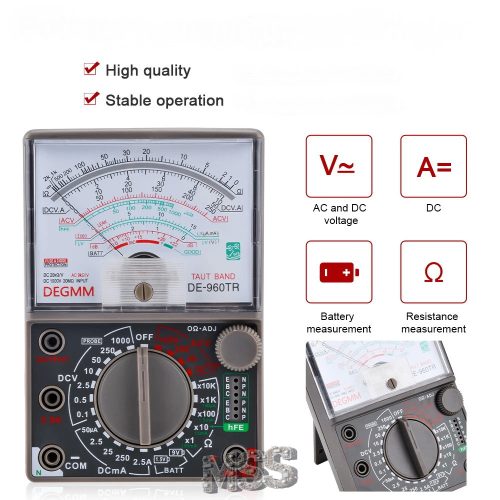

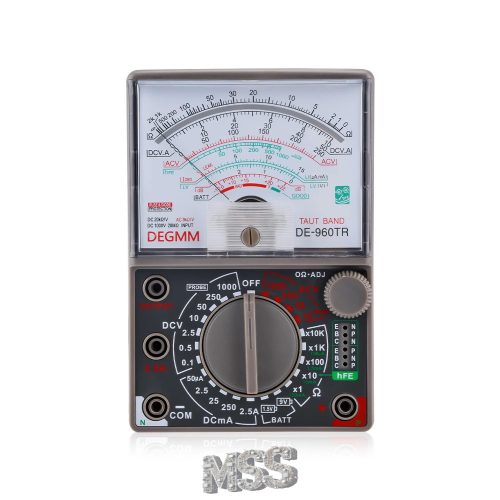

DePee DE-960TR Mechanical Pointer Analog Multimeter
The DePee DE-960TR is a highly reliable mechanical analog multimeter designed for electrical maintenance, automotive diagnostics, and DIY electronics learning. Featuring a sensitive coil pointer movement, it delivers immediate visual feedback for voltage, current, resistance, and battery testing.
Key Features & Specifications
- Wide Measuring Range: Tests DC voltage (0.1V–1000V), AC voltage (10V–1000V), DC current (50µA–250mA), and resistance (up to x10kΩ).
- Dedicated Battery & Triode Testing: Integrated diagnostic functions for 1.5V and 9V battery testing, alongside hFE transistor/triode testing.
- Overload Circuit Protection: Internal protective circuitry guards against accidental overload during operation.
- Compact & Durable Housing: Lightweight, robust casing measuring 152 x 100 x 32 mm, ideal for benchtop and field maintenance.
| Parameter | Specification |
|---|---|
| Brand | DePee |
| Model / MPN | DE-960TR |
| Display Type | Analog / Mechanical Pointer |
| DC Voltage Ranges | 0.1V / 0.5V / 10V / 50V / 250V / 1000V |
| AC Voltage Ranges | 10V / 50V / 250V / 1000V |
| DC Current Ranges | 50µA / 2.5mA / 250mA |

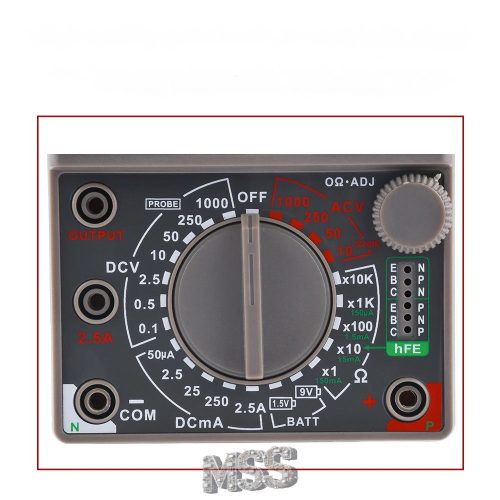

| Resistance Ranges | x1 / x10 / x1k / x10k |
| Special Diagnostic Tests | 1.5V / 9V Battery Test, Triode (hFE) Test |
| Power Supply | 2 x AAA (1.5V) or 1 x 9V Battery |
| Dimensions | 152 x 100 x 32 mm |
| Weight | 250 g |
Data
Weight:
300 g/pcs
